GRAVITY BED FILTER CONVEYOR

CHIPMASTER™ GRAVITY BED FILTER SYSTEMS

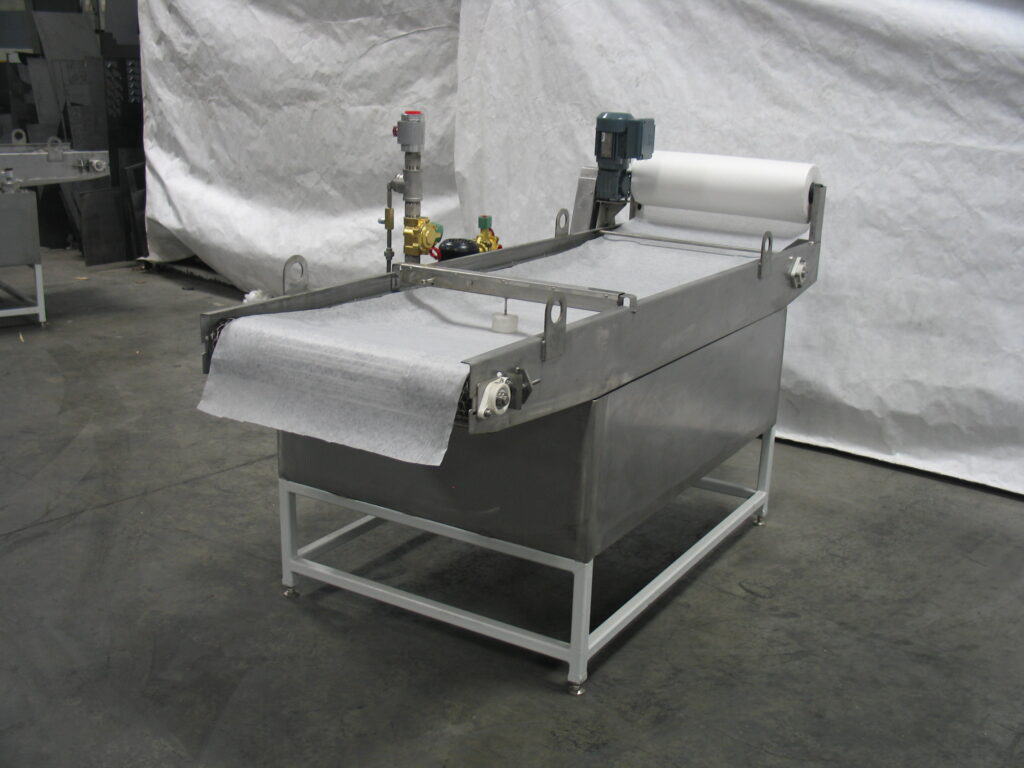

MC3 gravity bed filter conveyor systems provide coolant filtration for particle sizes ranging from 5 to 100 microns. This system is available in two models with seven standard sizes to handle flow rates from 10 to 100 GPM. These options allow you to adapt the size of your system to your specific needs.

The strainer-supported filtration roll media collects chips and fines as coolant passes to the tank. When contaminants build up on the media roll, it automatically advances, so you don’t need to constantly monitor it. You can also program this convenient feature to coordinate with machine cycles, which makes this system truly customizable. The filter deposits any chips and fine scrap into a steel swarf hopper.

Applications of Gravity Bed Filter Conveyors

Gravity bed filters are ideal for filtering light metal fines from grinding, honing, and Swiss-type screw machines. Systems can be customized to your specific application.

Conveyor Features and Options

• Fully automatic operation
• Steel swarf hopper
• Roll of media
• Immersed pump

Are Coolant Filtration Systems Necessary?

A coolant filtration system is necessary to keep equipment coolant clean and functional. When it’s polluted by too much scrap, it can impact the machine’s productivity. Unfiltered coolant may even cause permanent damage to your expensive equipment.

Contact MC3 Manufacturing For Your Gravity Bed Filer Conveyor System Needs

In the MC3 Manufacturing system, gravity bed filters use a straining process to lessen the risk that metal shards will harm your machinery. Dirty coolant passes through the filter, which collects the contaminants. Then, an immersed pump sends the clean coolant back into the machine. With clean coolant running through your equipment, it stands a much better chance of lasting longer.

For your custom gravity bed system, contact us today, and we’ll start drawing up the plans. We’ll take all your needs into account as we construct your custom conveyor system.
