Depending on your material handling needs, MC3 Manufacturing can supply you with the right standard conveyor. We offer a variety of conveyor systems with consistently robust and reliable builds, along with shorter lead times compared to custom conveyors. Our standard conveyors include slider-bed, magnetic, and hinged belt conveyors. Learn more about the features and capabilities of these standard conveyors as well as our streamlined ordering process.
- Slider-Bed Conveyors: These conveyors facilitate the general transportation of goods in most industries.
- Magnetic Conveyors: Magnetic conveyors carry iron-containing chips or parts.
- Hinged Belt Conveyors: Hinged belt conveyors eliminate gaps in the conveyor to carry small objects.
Ordering Process
Our convenient and simple ordering process starts with clients selecting their desired parameters, such as the conveyor’s width, length, and discharge height. Clients then select additional options, if necessary, before submitting the request for a quote. Our internal team analyzes this request and provides an accurate quote.
To order your conveyor solution, request a quote here.

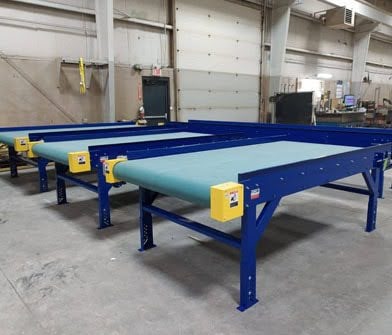

Slider-Bed Conveyors
Slider-bed conveyors feature belts that slide along a solid surface instead of belts supported by rollers. This design makes slider-bed belt conveyors suitable for transporting parts, cartons, totes, and irregularly shaped objects in most industries. Applications for these conveyors include packaging, sorting, progressive assembly, inspection, and conveying on declines or inclines.
Choose from several options for this standard conveyor type, including:
- Length, height, and width
- Motor voltage
- Belt options
- Sensors
- Basic controls (VFD and 3-button station)
- Casters and legs for mobile and elevated models
Request a quote for slider-bed conveyors
Magnetic Conveyors
Magnetic belt conveyors are standard conveyor beds fitted with permanent ceramic 5 magnets. These magnets operate in a reciprocating motion beneath the conveyor cover and can hold ferrous chips or parts. The magnets are typically installed 12 inches apart from one another along the conveyor.
Options that customers can select for our standard magnetic conveyors include:
- Length, height, and width
- Motor voltage
- Magnet spacing
- Sensors
- Basic controls (VFD and 3-button station)
- Casters and legs for mobile and elevated models
Request a quote for magnetic conveyors

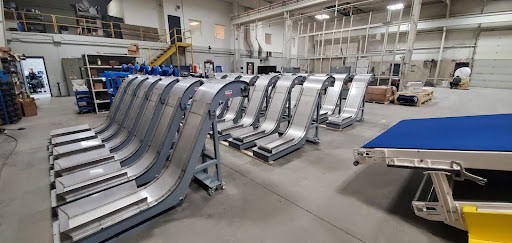

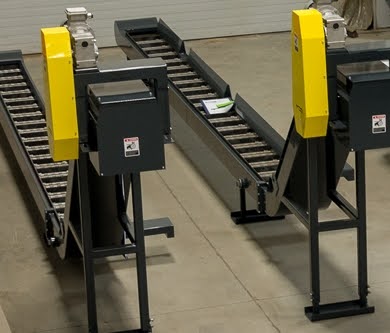

Hinged Belt Conveyors
Hinged belt conveyors keep small objects from slipping through gaps in the conveyor by using interlocking steel slats. Common applications include material handling processes that work with small components, such as those transporting forgings, metal chips, fasteners, die-cast parts, and stamping scrap.
Different options available for our standard hinged belt conveyors include:
- Length, height, and width
- Motor voltage
- Belt options, including 1.5″ or 2.5″ pitch and variable cleat spacing
- Sensors
- Basic controls (VFD and 3-button station)
- Casters and legs for mobile and elevated models
Request a quote for hinged belt conveyors
Request a Quote for Standard Conveyors from MC3 Manufacturing
Since our establishment in 2000, MC3 Manufacturing has developed into a leading supplier of standard and custom conveyors that meet even the most challenging material handling requirements. Our dedicated team uses the latest technologies and best materials to deliver consistently high-quality conveyor solutions.
Whether you need a slider-bed, magnetic, or hinged belt conveyor, MC3 Manufacturing can deliver a quick, robust solution based on your unique requirements. In addition to standard conveyors, we also offer extensive customization services for more specialized material handling needs, ensuring efficient integration into your facility.
To get started on the conveyor solution for your application, request a quote from us today.
